TYPES OVERVIEW & COMPONENTS

CTM cable trays and accessories are manufactured in compliance with BS EN 61537, 2001/BS 5750/BS EN 10130/BS EN 10131/ BS EN 10051 and NEMA standards.

MATERIALS : Pre‐Galvanized, Hot‐Dip Galvanized, Stainless Steel & Aluminium

MATERIAL THICKNESS : 1.00 mm to 3.00mm

CABLE TRAY :

Thickness : 1.00 mm to 3.00 mm

Side Height : 25 mm to 150 mm

Width : 50 mm to 1200 mm

Length : 2500 mm

All illustrations, drawings and descriptive material in this Profile is for informative nature only, and do not form a complete package of the specifications or description of the goods.

TYPE OF SIDE HEIGHTS

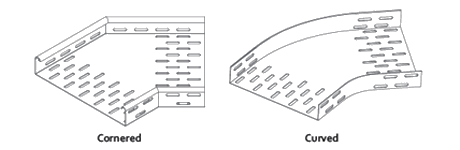

TYPES OF ACCESSORIES

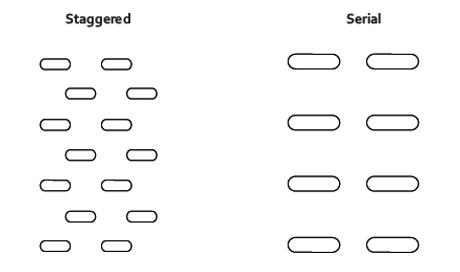

TYPES OF PERFORATION

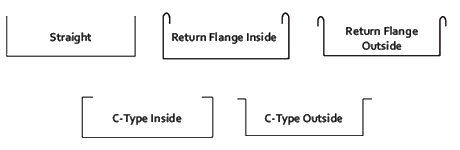

TYPE OF SIDE HEIGHTS

MATERIAL :

MILD STEEL ‐ PLAIN

A.) Hot rolled Steel Plates, Sheets and Coils S235 Jr, As per : EN 10025 ‐2 / DIN 17100 / BS 4360 / ASTM A 653M / ASTM A 1011/ ASTM A 101101a JIS 3101 / JIS 3106 / GB 700 / GB / T1591. ASTM A 907 / ASTM A 1018M. ASTM A 570M / ASTM A 572M.

B.) Cold rolled Steel DC 01, As per : EN 10130 / DIN 1623, Part 2 / BS 1449:1 / ASTM A366 / ASTM A 1008 / JIS G 3141 / GB 699. EN 10131 / ASTM A 568M

MILD STEEL ‐ GALVANIZED :

C.) Continuously Pre‐ Galvanized Hot–Dip Zinc Coated Steel DX 51D + z, As per : EN 10327 / DIN 17162 / BS 2989/ ASTM A 527M / ASTM A 653M / JIS G 3302. EN 10326/ EN 10142 / ASTM A 526, 527, 528/ ASTM A 146.

D.) Electro Galvanized Steel (Electrolytic Coating) DC01 + ze, As per : EN 10152 / DIN 17163 / ASTM A591 / JIS G 3313 / JIS G 3141/BS 1449:1. EN 10131

STAINLESS STEEL :

F.) Austenitic Stainless Steels AISI 304 & 316, As per : ASTM A 240 /EN 10088‐2/ DIN 17400 / BS 1449:2 / ASTM A480 / ASTM A666 / ISO 3506 / EN 10028‐7 /JIS G 4304

F.1) Stainless Steel Fasteners EN 3506

F.2) Stainless Steel Wire BS 1554, ASTM A276

ALUMINIUM

G.) Aluminium 5052 & 6063

FINISHES

1. Hot–DIP Galvanization After Fabrication As per : ASTM A 123 / ASTM A 153 / ISO 1461. BS 729 / DIN 50976.

2. Zinc Electroplating After Fabrication As per : ASTM B633 / EN 12329 / ISO 4042/ BS 1706 / BS 3382 / DIN 50961.

3. Powder Coating : Epoxy / Polyester / Epoxy & Polyester, BS 3900 / ISO 2409 / ISO 1519 / ISO 1520.
